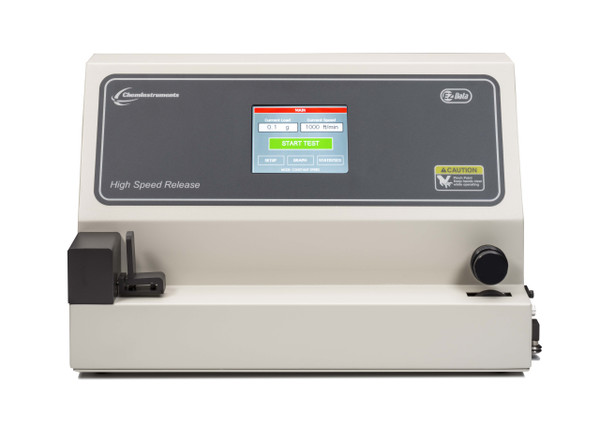

High Speed Release

SKU:
HSR-2000-5

Product Overview

  • Rugged construction, capable of withstanding the abuse of the production environment
  • Digital speed control with encoder feedback
  • 2 modes of operation being constant speed and ramp speed
  • Selectable speed range from 30 to 1000 fpm (10 - 300 mpm) in constant speed mode
  • Ramp speeds at 0-1, 0-2, 0-3, 0-4, 0-5m/sec
  • Designed to utilize the sample size indicated in the FINAT FTM 4 test method
  • Capable of testing liner from adhesive or adhesive from liner
  • 5 pound load cell is included with the machine (2 and 10 pound load cells are optional)
  • Accurate to ± 0.1% of load cell range
  • Capable of pulling up to 5 pounds (2.2 Kg)
  • Operating temperature range 32° - 150° F (0° - 70° C)
  • Capable of stand-alone operation with integrated touch display
  • Data can be downloaded to EZ Data software for complete data management
  • 5.7 inch touch screen display
  • Universal input voltage from 85-265 VAC(50/60Hz)

Data Acquisition System

  • The ChemInstruments electronic data acquisition system is a state-of-the-art microprocessor controlled force measurement package that combines accuracy with ease of use. This system simultaneously controls test motion, reads the force of a test from a load cell, displays it and also stores that data in its memory.
  • Records 400 data points during a test interval, adjusting the sampling rate according to the selected test speed
  • Displays a graph of all measured force values upon completion of a test
  • Displays the average, high and low measured force results immediately upon completion of a test
  • Displays test values in grams, kilograms, ounces, pounds or Newtons
  • Export data by USB connection to a local PC with our EZ Data software



EZ Data

  • EZ Data Compatible Remote setup, operational control and enhanced data collection are all possible when coupled with our EZ Data management software. This application requires an external PC. (See more information about the EZ-Data product)

Calibration Service

  • Calibration Service is available for this equipment. Contact us for more information.

HSR-2000 Equipment Manual


Accessories


Options

  • Various sized specimen tape cutters
  • Universal input voltage
  • Additional load cell capacities available: 2 and 10 pounds
  • PSTC and TLMI testing manuals

Specifications

  • Height: 14" (35 cm)
  • Width: 21" (53 cm)
  • Depth: 11" (28 cm)
  • Weight: 25 lbs (11 Kg)

Methods

Some of the more popular test methods that this device is capable of performing:

  • TLMI: L-1A3
  • FINAT: FTM-4
